Tutorial 0: ECE Linux Server Remote Access

All of the laboratory assignments for this course will be completed by remotely logging into a cluster of ecelinux servers. The ecelinux servers all run the Red Hat Enterprise Linux 8 operating system, and they all use an identical setup. You do not need to do anything special to create an ecelinux account. You will be using your NetID and Cornell password to login, and an ecelinux account will be automatically created for you when you first login. Any student enrolled in any ECE class should automatically be granted access to the ecelinux servers. Having said this, if you cannot log into the ecelinux servers please reach out to the course staff for assistance.

Later tutorials will discuss how to use the Linux development environment and the Git distributed version control system. In this tutorial, we focus on how to setup remote access to the ecelinux servers by first connecting to the Cornell VPN and then using two different options to remotely access the ecelinux servers. The first remote access option is based on using PowerShell (for Windows OS users) or Mac Terminal (for Mac OS X users) and only supports primitive text-based interaction. We recommend using PowerShell or Mac Terminal as backup options to debug connection issues to the ecelinux servers. The primary remote access option recommended in this course is through Visual Studio Code (VS Code) which provides a very nice interface with support for working at the command line, graphic text editing, and graphic file browsing. The third remote access option is based on using Microsoft Remote Desktop and is required when executing a Linux application with a graphical user interface.

1. Select an ecelinux Server

It is important to keep in mind that we will use ecelinux as shorthand for the entire cluster of 20 servers. These servers are named as follows:

  • ecelinux-01.ece.cornell.edu (avoid using this server!)
  • ecelinux-02.ece.cornell.edu
  • ecelinux-03.ece.cornell.edu
  • ...
  • ecelinux-18.ece.cornell.edu
  • ecelinux-19.ece.cornell.edu
  • ecelinux-20.ece.cornell.edu

At the beginning of the semester, select a server and always use that same server. Do not just log into ecelinux.ece.cornell.edu. Avoid using ecelinux-01 since many students use this server by default and it can become overloaded. Continue to always use the same server unless you have trouble logging into that server, in which case you can try switching to a different server.

All of the ecelinux servers are identical. Every tool is available on every ecelinux server. All of your files are available on every ecelinux server.

2. Connecting to the Cornell VPN

If you are logging into the ecelinux servers from on campus (i.e., using the Cornell wired or wireless network), then you do not need to enable the Cornell virtual private network (VPN). However, if you are off campus, then you will need to enable the Cornell VPN whenever you want to log into the ecelinux servers. The VPN provides very secure access to all on-campus network resources. More information about the Cornell VPN is available here:

Simply follow the instructions at the following link to install the Cisco VPN software for the appropriate operating system you use on your laptop/workstation:

Once the Cornell VPN is installed, then connect to the Cornell VPN by following these instructions and using your Cornell NetID and password:

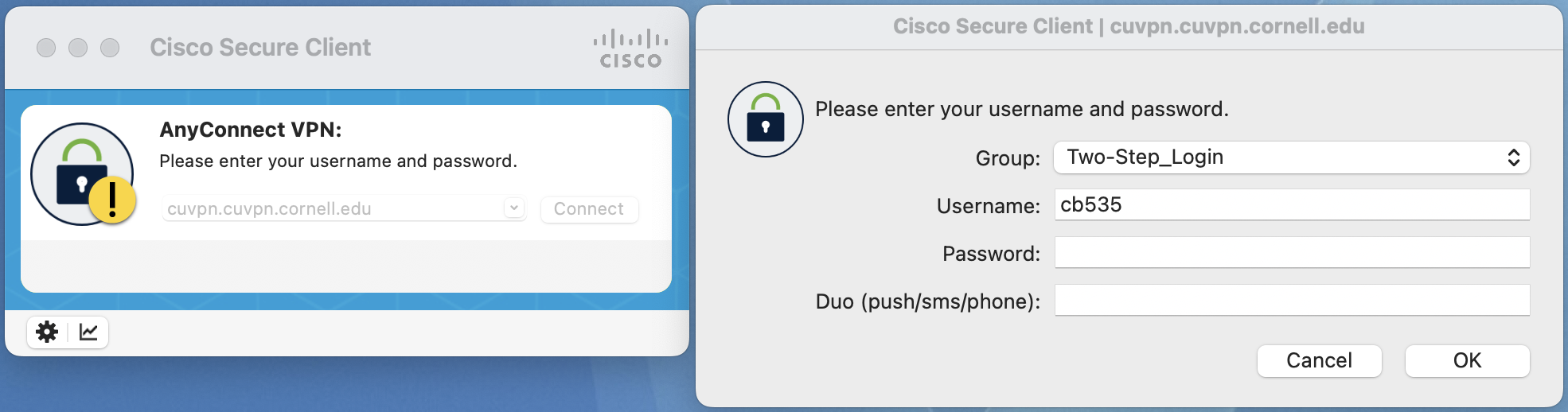

The Cornell VPN uses the Cisco Secure Client shown below.

3. Remote Access via PowerShell or Mac Terminal

PowerShell is part of Windows OS and Mac Terminal is part of Mac OS X. Both enable interacting with your system from the command line (i.e., a powerful text-based environment where users type commands to manipulate files and directories and execute applications). Both also enable remotely accessing other systems (e.g., the ecelinux servers) via the command line using SSH, a highly secure network protocol and associated client/server program. Both will enable you to log into the ecelinux servers and to then manipulate files and directories and execute applications remotely on the ecelinux servers using the Linux command line. You must try logging in using PowerShell or Mac Terminal before attempting to use VS Code!

3.1. Starting PowerShell or Mac Terminal

First, if you are off campus, then you must be connected to the Cornell VPN before attempting to use X2Go to access the ecelinux servers (see Section 1). To start PowerShell click the Start menu then search for Windows PowerShell. To start Mac Terminal go to your Applications folder and choose Utilities > Terminal, or open Spotlight, type Terminal, and press enter.

3.2. Logging into ecelinux Servers with PowerShell or Mac Terminal

After starting PowerShell or Mac Terminal, type in the following command at the prompt to log into the ecelinux servers using SSH.

% ssh netid@ecelinux-XX.ece.cornell.edu

Replace netid with your Cornell NetID in the command above and replace XX with the number of ecelinux server you plan to use this semester. You should not enter the % character. We use the % character to indicate what commands we should enter on the command line. Executing the command will prompt you to enter your Cornell NetID password, and then you should be connected to the ecelinux servers.

The very first time you log into the ecelinux servers you may see a warning like this:

 The authenticity of host ’ecelinux-XX.ece.cornell.edu (128.253.51.206)’
 can’t be established. ECDSA key fingerprint is
 SHA256:smwMnf9dyhs5zW5I279C5oJBrTFc5FLghIJMfBR1cxI.
 Are you sure you want to continue connecting (yes/no)?

The very first time you log into the ecelinux servers it is okay to enter yes, but from then on if you continue to receive this warning please contact the course staff.

Once you have opened a terminal, the very first thing you need to do after logging into the ecelinux servers is source the course setup script. This will ensure your environment is setup with everything you need for working on the laboratory/programming assignments. Enter the following command on the command line:

% source setup-ece2300.sh

Again, you should not enter the % character. You should now see a blue ECE 2300 in your prompt which means your environment is setup for the course. The following figure shows what your prompt should look like if you have sourced the course setup script. See the final section of this tutorial for more on how to automatically source the setup script every time you log into the ecelinux servers.

You can log out of the ecelinux server with the exit command.

% exit

Try logging in, sourcing the setup script, and logging out multiple times using PowerShell or Mac Terminal. You must make sure you can do this successfully before attempting to setup VS Code!

3.3. Troubleshooting Remote Access via PowerShell or Mac Terminal

If you cannot source the setup script it might be because you either took a course in a previous semester which used ecelinux or you are currently taking a course which also uses ecelinux and you modified your .bashrc to automatically source the other course's setup script.

You should only source a setup script for a single course at a time. If you modified your .bashrc to source a course setup script you need to remove those lines from your .bashrc. If you are taking two courses which use ecelinux in the same semester then you should make sure not to source either setup script in your .bashrc. You should instead always source the appropriate setup script each time you log into ecelinux for whatever course you are currently working on.

You can use the simple nano text editor to edit your .bashrc like this:

% nano .bashrc

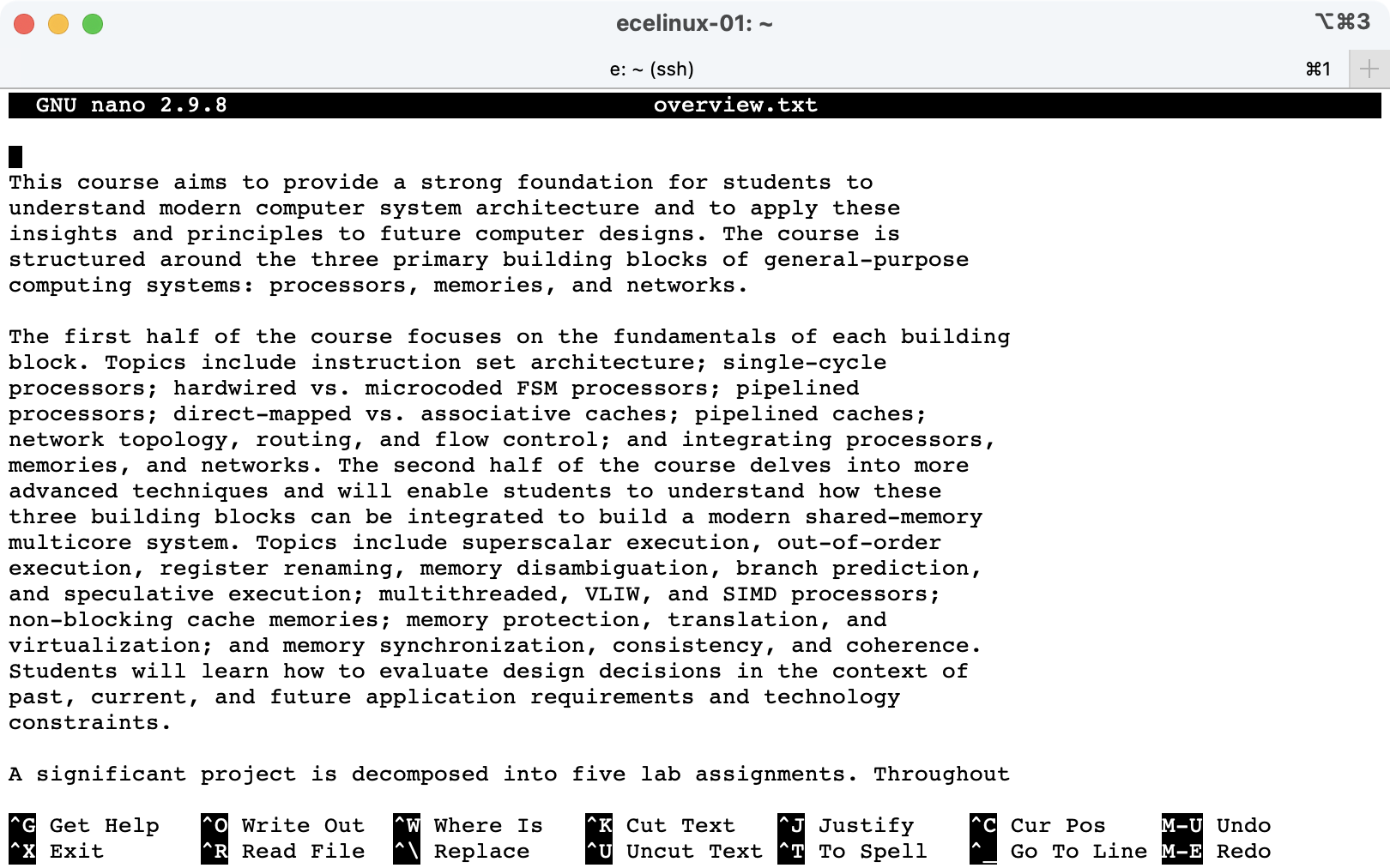

Notice that the editor specifies most of the useful commands at the bottom of the terminal screen. The symbol \^ indicates the CONTROL key. To type any text you want, just move the cursor to the required position and use the keyboard. To save your changes press CONTROL+O (i.e., press the CONTROL key and the O key at the same time) and press the <ENTER> key after specifying the filename you want to save to. You can quit by pressing CONTROL+X. Use CONTROL+G for help.

Delete every line which sets up ecelinux for any course. A pristine .bashrc should look like this:

if [ -f /etc/bashrc ]; then
  . /etc/bashrc
fi

if ! [[ "$PATH" =~ "$HOME/.local/bin:$HOME/bin:" ]]
then
    PATH="$HOME/.local/bin:$HOME/bin:$PATH"
fi
export PATH

Log out, log in, source the setup script, and log out multiple times using PowerShell or Mac Terminal. You must make sure you can do this successfully before attempting to setup VS Code!

4. Remote Access via VS Code

While combining PowerShell or Mac Terminal with a text-based editor like Nano can certainly work, it is not the most productive development setup. We strongly recommend using VS Code as your primary remote access option for code development. VS Code offers a nice balance of productive features while also working well with moderate internet speeds.

VS Code uses a unique approach where the GUI interface runs completely on your local laptop/workstation and then automatically handles copying files back and forth between your local laptop/workstation and the ecelinux servers. VS Code is portable across many operating systems and has a thriving ecosystem of extensions and plugins enabling it to function as a full-featured IDE for languages from C to Javascript. More information about VS Code is here:

4.1. Installing VS Code on Your Laptop/Workstation

You can download VS Code by simply going to the main VS Code webpage:

There should be an obvious link that says "Download for Windows" or "Download for MacOS". Click on that link. On Mac OS X, you will need to drag the corresponding Visual Student Code.app to your Applications folder.

4.2. Starting and Configuring VS Code

First, if you are off campus, then you must be connected to the Cornell VPN before attempting to use VS Code to access the ecelinux servers (see Section 1). Start by opening VS Code. The exact way you do this will depend on whether you are using a Windows OS or Mac OS X laptop/workstation.

The key to VS Code is installing the correct extensions. You will need extensions for the Verilog hardware description language (HDL). We also want to install a special extension which will enable remotely accessing the ecelinux servers using SSH. Choose View > Extensions from the menubar. Enter the name of the extension in the "Search Extensions in Marketplace" and then click the blue Install button. Here are the names of the extensions to install:

  • Remote - SSH (use the one from Microsoft)
  • Verilog (use the one from Masahiro Hiramori)
  • Surfer (use the one from surfer-project)

4.3. Logging into ecelinux Servers with VS Code

After starting VS Code, choose View > Command Palette from the menubar. Enter the following command in the command palette:

Remote-SSH: Connect Current Window to Host..

Do not use Remote-SSH: Add new SSH host... and do not use Connect to Host. Use Remote-SSH: Connect Current Window to Host...

VS Code will then ask you to Select configured SSH host or enter user@host, and you should enter the following:

netid@ecelinux-XX.ece.cornell.edu

Replace netid with your Cornell NetID in the command above and replace XX with the number of ecelinux server you plan to use this semester. If you are on a Windows OS laptop/workstation, then you may see a pop-up which stays that the Windows Defender Firewall as blocked some features of this app. This is not a problem. Simply click Cancel.

You might also see a drop down which asks you to choose the operating system of the remote server with options like Linux and Windows. Choose Linux.

Finally, the very first time you log into the ecelinux servers you may see a warning like this:

"ecelinux-XX.ece.cornell.edu" has fingerprint
"SHA256:YCh2FiadeTXEzuSkC0AOdglBgPciwc8WvcCPncvr2Fs"
Are you sure you want to continue?
Continue
Cancel

The very first time you log into the ecelinux servers it is okay to enter yes, but from then on if you continue to receive this warning please contact the course staff.

Hopefully, VS Code will now prompt you to enter your Cornell NetID password, and then you should be connected to the ecelinux servers.

Also the very first time you log into the ecelinux servers you will see a pop up dialog box in the lower right-hand corner which says Setting up SSH host ecelinux-XX.ece.cornell.edu (details) Initializing.... It might take up to a minute for everything to be setup; please be patient! Once the pop up dialog box goes away and you see SSH: ecelinux.ece.cornell.edu in the lower left-hand corner of VS Code then you know you are connected to the ecelinux servers.

The final step is to make sure your extensions for the Verilog HDL are also installed on the server. Choose View > Extensions from the menubar. Use the "Search Extensions in Marketplace" to search for the same Verilog HDL extensions that we installed earlier. Instead of saying Install it should now say Install in SSH: ecelinux-XX.ece.cornell.edu. Install the Verilog HDL extension on the ecelinux servers. You only need to do this once, and then next time this extension will already be installed on the ecelinux servers.

4.4. Using VS Code

VS Code includes an integrated file explorer which makes it very productive to browse and open files. Choose View > Explorer from the menubar, and then click on Open Folder. VS Code will then ask you to Open File Or Folder with a default of /home/netid. Click OK.

You might see a pop-up which asks you Do you trust the authors of the files in this folder? Since you will only be browsing your own files on the ecelinux server, it is fine to choose Yes, I trust the authors.

This will reload VS Code, and you should now see a file explore in the left sidebar. You can easily browse your directory hierarchy, open files by clicking on them, create new files, and delete files.

VS Code includes an integrated terminal which will give you access to the Linux command line on the ecelinux servers. Choose Terminal > New Terminal from the menubar. You should see the same kind of Linux command line prompt that you saw when using either PowerShell or Mac Terminal.

If you see a course number for a course other than ECE 2300 in your prompt, then stop! This means you likely have sourced the setup script for a different course. You must fix this before you can work on this course. Exit VS Code, follow the instructions in Section 3.3, and then try connecting with VS Code again.

The very first thing you need to do after logging into the ecelinux servers is source the course setup script. This will ensure your environment is setup with everything you need for working on the laboratory/programming assignments. Enter the following command on the command line:

% source setup-ece2300.sh

Again, you should not enter the % character. You should now see a blue ECE 2300 in your prompt which means your environment is setup for the course. See the final section of this tutorial for more on how to automatically source the setup script every time you log into the ecelinux servers.

To experiment with VS Code, we will first grab a text file using the wget command. The next tutorial discusses this command in more detail. Type the following command in the VS Code integrated terminal.

% wget http://www.csl.cornell.edu/courses/ece2300/overview.txt

You can open a file in the integrated text editor using the code command like this:

% code overview.txt

The following figure shows what VS Code should look like if you have sourced the course setup script and opened the overview.txt file. Notice how the overview.txt file opened in a new tab at the top and the terminal remains at the bottom. This enables you to have easy access to editing files and the Linux command line at the same time.

We highly recommend turnning on auto save so you don't forget to save your work. You can do this by choosing File > Auto Save from the menubar.

4.4. Turning off Microsoft Copilot

This course uses an "AI as TA" policy, which means students can use AI for similar questions they might ask a TA. Microsoft Copilot enables AI to write code automatically for students. Since a student would never ask a TA to write code for them, using Microsoft Copilot is a violation of the Academic Integrity Policy and prohibited in this course. Students will not have access to AI during the prelim/final exams nor the Verilog exam, so students which violate this policy are unlikely to succeed in these assessments.

There are two steps turning off AI functionality in VS Code:

  • If you have already installed the Copilot extensions, you need to first uninstall the Copilot and Copilot Chat extensions

  • Choose View > Command Palette from the menubar. Enter the following command in the command palette:

    Chat: Hide AI Features

More information can be found here:

You should also of course uninstall any other AI extensions such as Cline, Roo Code, etc.

4.5. Troubleshooting Remote Access via VS Code

There may be issues where sometimes VS Code just keeps asking you for your password or VS Code just hangs when you try and connect to the ecelinux servers. This might mean VS Code is getting stuck. You can definitely ask the course staff to help, but you can also try to fix it on your own.

One thing to try is to kill the VS Code server on the host. Choose View > Command Palette from the menubar. Enter the following command in the command palette:

Remote-SSH: Kill VS Code Server on Host...

Another thing to try (especially if the code command is not working for you) is to delete the .vscode-server directory on the sever. Of course, how can you delete this directory if you cannot use VS Code to access the ecelinux servers? You can use PowerShell or Mac Terminal to log into the ecelinux servers (see Section 3).

Once you have gained access to the Linux command line on the ecelinux servers using either PowerShell or Mac Terminal, then you can delete the .vscode-server directory like this:

% rm -rf .vscode-server

Be very careful with the rm command since it deletes files permanently!

Note that using the Remote-SSH: Add new SSH host... option does not always seem to work on Microsoft Windows OS laptops/workstations. This is why we recommend just using Remote-SSH: Connect Current Window to Host... directly.

VS Code can sometimes "cache" your .bashrc. This means if you modfiy your .bashrc, log out, and log back in the changes to your .bashrc will not be reflected. If you modify your .bashrc we recommend: (1) using Remote-SSH: Kill VS Code Server on Host... as described above; (2) close all instances of VS Code; (3) either use PowerShell or Mac Terminal to remove the .vscode-server directory as described above; and (4) reconnect VS Code to ecelinux.

Sometimes VS Code can take a very long time to save a file. This is usually because VS Code is trying to auto-format the file on the ecelinux servers. To turn off auto-formatting, open the VS Code settings menu. On Windows OS, choose File > Preferences > Settings from the menubar. On Mac OS X, choose Code > Preferences > Settings from the menubar. Click on Text Editor and then Formatting. Make sure Format On Save is not checked.

5. Remote Access via Microsoft Remote Desktop

We will primarily use VS Code for working at the terminal, developing our hardware, and debugging our designs. However, we need to use a different remote accesss option if we want to run a Linux application which has a graphical user interface (GUI), which for this course includes the Quartus FPGA tools. We will be using the Microsoft Remote Desktop application to log into the ecelinux servers to provide us a "virtual desktop" which we can then use to interact with Quartus on the server.

5.1. Installing Microsoft Remote Desktop on Your Laptop/Workstation

Start by installing the Microsoft Remote Desktop application. On Windows, simply use the Start Menu to search for Microsoft Remote Desktop. On Mac OS X, download Microsoft Remote Desktop from the App Store:

5.2. Starting and Configuring Microsoft Remote Desktop from Windows

Start Microsoft Remote Desktop. For the Computer you must choose the same ecelinux server you selected in Section 1; do not just use ecelinux.ece.cornell.edu. Then click on Connect. You may see a message like this:

The remote computer could not be authenticated due to problems with its
security certificate. It may be unsafe to proceed.

If you see this message then take the following steps:

  • Click Don't ask me again for connections to this computer
  • Click Yes

This should launch a "virtual desktop" on ecelinux. You will need to enter your NetID and password in the xrdp login.

5.2. Starting and Configuring Microsoft Remote Desktop from Mac OS X

Start Microsoft Remote Desktop and Connections > Add PC from the menu. For the hostname you must choose the same ecelinux server you selected in Section 1; do not just use ecelinux.ece.cornell.edu. Then user the following setup

  • Click the Credential drop down and choose Add Credentials
    • Username: netid@cornell.edu (must have @cornell.edu at end!)
    • Password: NetID password
    • Friendly name: pick a name for the Credential (e.g., ECE2300)
  • Display tab
    • Uncheck Start session in full screen
  • Devices & Audio tab
    • Uncheck Printers and Smart cards
  • Click Add

To log into ecelinux double click on the corresponding entry in Microsoft Remote Desktop. You may see a message like this:

Your are connecting to the RDP host ... The certificate couldn't be
verified back to a root certificate. Your connection may not be
secure. Do you want to continue?

If you see this message then take the following steps:

  • Click Show Certificate
  • Click Always trutst XRDP when connecting ...
  • Click Continue

This should launch a "virtual desktop" on ecelinux.

5.3. Using Microsoft Remote Desktop

To use Linux GUI Applications you need to select Applications > Terminal Emulator from the menubar. This will start a terminal similar to what we use in VS Code. Then within this new terminal, source the setup script, and try starting the xclock program.

% source setup-ece2300.sh
% xclock

You should see an analog clock pop up in Microsoft Remote Desktop. Close the analog clock window.

Now try starting quartus like this:

% quartus &

You may see the following prompt when starting Quartus:

Select Run the Quartus Prime software, then click OK. We've found that Quartus often quits the first time after this, so you may need to re-open the application.

If you see this windows on your remote server it means that Quartus has launched successfully!

When finished choose Applications > Log Out. Do not check Save session for future logins, and click Log Out.

6. Sourcing Course Setup Script with Auto Setup

The previous sections have demonstrated how to remotely access the ecelinux servers, get to the Linux command line, and source the course setup script. Again, you must source the course setup script before doing any work related to this course! The course setup script configures everything so you have the right environment to work on the laboratory/programming assignments.

Since it can be tedious to always remember to source the course setup script, you can also use auto setup which will automatically source the course setup for you when you open a terminal. Note that if the environment for ECE 2300 conflicts with the environment required by a different course then you will need to manually source the setup script when you are working on this course. Enter the following command on the command line to use auto setup:

% source setup-ece2300.sh --enable-auto-setup

Now completely logout of the ecelinux servers then log back in and get to the Linux command line. The exact way to do this depends on which remote access option you using. You should see ECE 2300 in the prompt meaning your environment is automatically setup for the course. If at anytime you need to disable auto setup you can use the following command:

% source setup-ece2300.sh --disable-auto-setup

Again, if for any reason running the setup script prevents you from using tools for another course, you cannot use the auto setup. You will need to run the setup script manually every time you want to work on a laboratory/programming assignment for this course.
